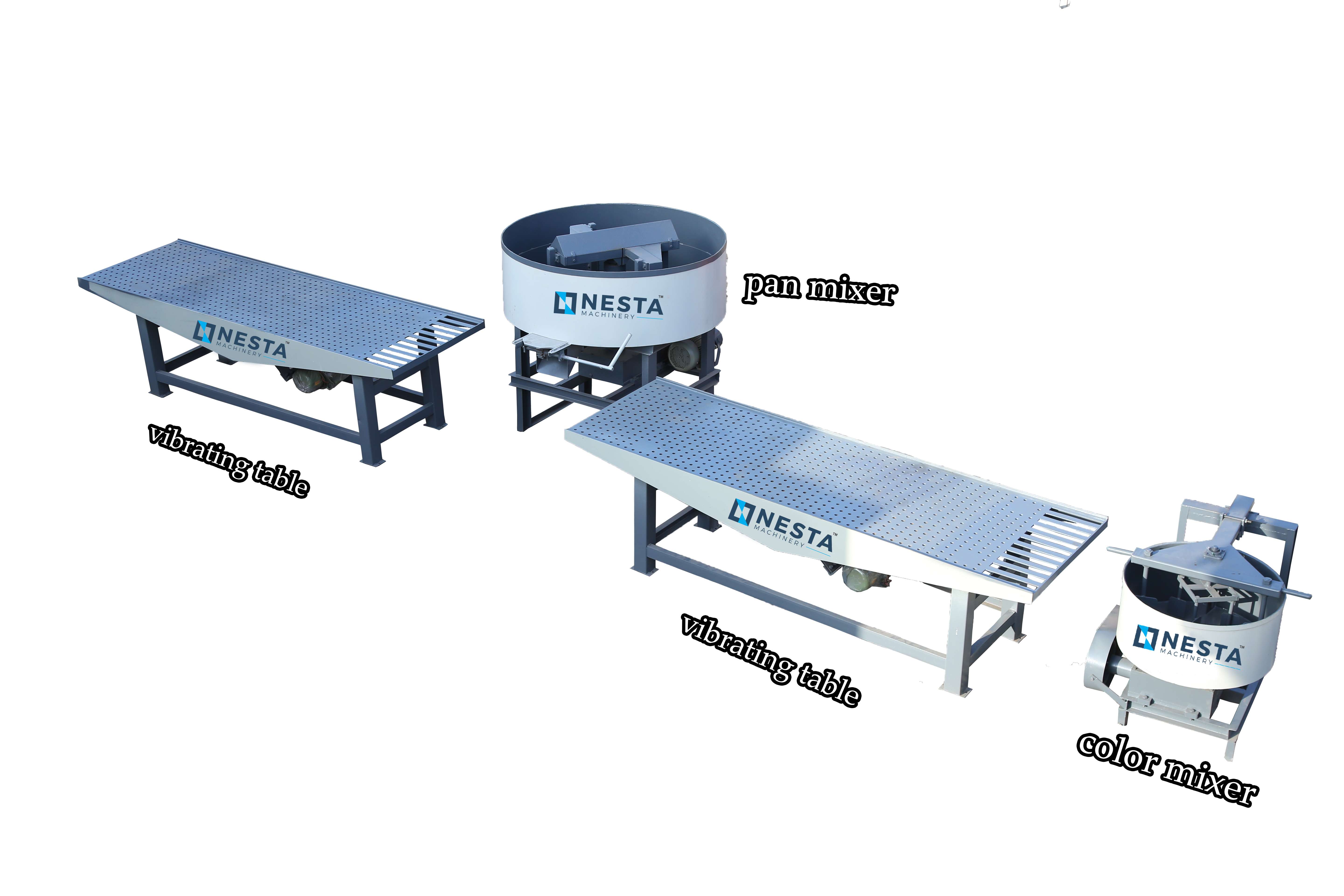

Paver Block Machinery

Model NESTA-07 Vibrating Table

Table size

10ft*3ft

Electric motor

2hp/3hp 3phase (Special vibration motor)

Production Capacity

2500 to 3000pcs.

Material use for Build

Top pallet 8mm/10MM,

 side pallets 8mm/10MM,

Application

For Making paver block, chequard tiles, curb stone, covering block through pvc rubber or plastic mould.



Model NESTA-08 Color Mixer

Diameter

750MM

Pan Height

300MM

Mixing Capacity

100 to 120kg

Electric Motor

2HP 3phase (Crompton)

Oil capacity

10ltr. Gear oil

Material Mixing

By Heavy hand faced

Material charges/Discharge

Manual

Material use for Build

Bottom pallet 8mm, side pallets 6mm

Application

For color mixing top color layer of paver blocks.



Model NESTA-09 Blade Pan Mixer

Diameter

1500MM

Pan Height

500MM

Mixing Capacity

400 to 450kg

Electric Motor

7.5HP 3phase (Crompton)

Oil capacity

15ltr. Gear oil

Material Mixing

By Heavy hand faced scraper

Material charges

Manual

Material Discharges

Manual bottom door opening

Material use for Build

Bottom pallet 15MM, side pallets 6MM

Application

Mixing raw material of concrete, sand, cement 2nd layer of paver block.
