Manufacturing capacity:-Fly ash Bricks 12kvt in 1 operation.
Standard Bricks size 230*110*75MM.
Heavy duty body structure, Build from 25MM MS plate
Double Hydraulic Pressure Cylinder
The Machine is controlled by PLC panel.
Main technology Hydraulic Pressure with ultra Vibration system specially
Designed to produce high quality fly ash bricks & Blocks.
Technical Specification.
Cylinder Tonnage |
110 ton +110 ton Double Cylinder |
Cycle Period for bricks |
18 to 20 second |
Cylinder Dia |
150*200MM |
Cycle Period for Color Paver |
25 to 30 second |
Main Technology |
Hydraulic Pressure With Vibration |
Color Feeder |
Optional As per requirement (Charges extra.) |
Operation System |
Plc Panel Control |
Stacker System |
ATTCHED with MACHINE |
Oil cooling System |
Yes Available |
Plate Dimension |
600*860*24MM |
General Machine Specification of Model NESTA-02
Total Power Need |
15HP Power Pack 4HP Vibration (Crompton) |
7.5HP+7.5HP=15HP Pan Mixer 2nos 1HP water Dosing 2HP Power pack (Crompton) |
3HP conveyor Belt (Crompton) |
6HP Stacker System (Crompton) |
Total 46HP/ 34.27kw |
Man Power |
1 Skilled |
6 Unskilled |
Total 7 person |
||
Oil need for Machine |
68 No. hydraulic Oil for Main Machine Power Pack 68 No. hydraulic Oil for Pan Mixer Power Pack 90 No. Gear oil for Pan Mixer |
550Ltr. 100 Ltr. 30Ltr. |
|||
Total Space Need |
- |
30,000sq ft |
|||
Shed Size |
- |
100*50ft |
|||
Shed Height |
- |
18ft |
|||
Pallets Requirement |
Size 600MM*860MM*24MM |
1500pcs |
|||
Accessories |

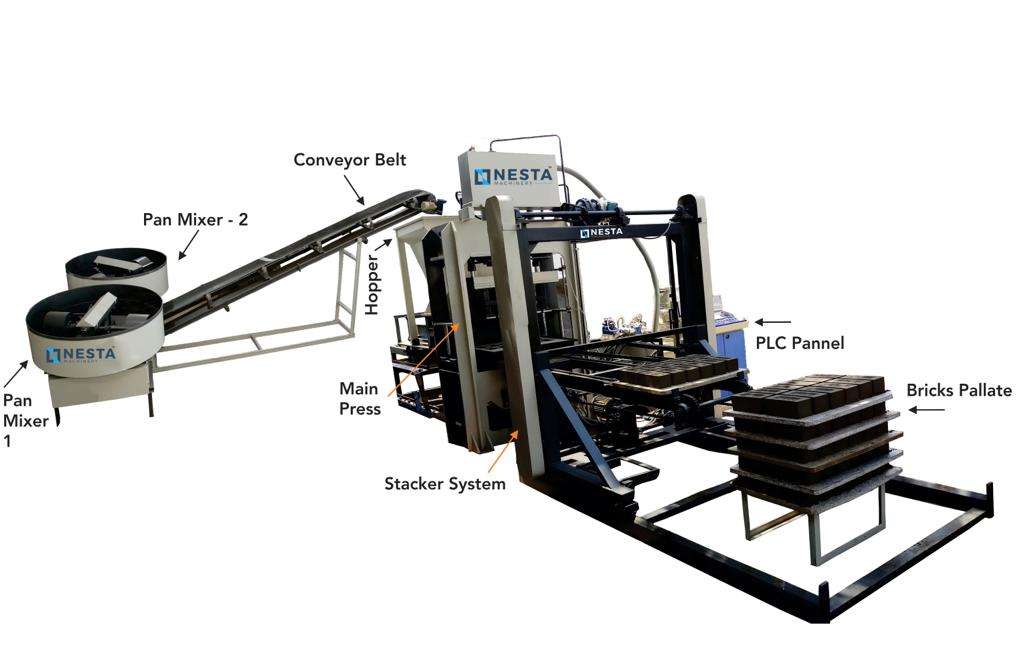

1pcs Automatic Fly ash Bricks Machine with power pack & auto control Plc Panel, 1pcs Auto pallets Stacker System,1pcs Bricks Die set, 2pcs Roller Pan Mixer,1pcs conveyor belt,2pcs Hydraulic trolley, 2pcs Borrow Trolley, tool kit, blower |
||||
Note:- |
We provide engineering Drawing for civil work And shed for Machine |
RAW MATERIAL RATIO |
|||
No. |
Material |
Ratio |
Properties |
1 |
Fly ash |
50% |
In powder form |
2 |
Sand |
20% |
River Sand |
3 |
Stone Dust |
20% |
Less than 6mm |
4 |
Cement (Lime + Gypsum) |
10% |
OPC 53 Grade |
Total |
100% |
|
|
This Composition may very depending on the quality & cost of the raw-Material. |
Production Details Model NESTA-02
PRODUCT SIZE & PRODUCTION DETAILS |
|||||||
|
|
Pallet size 600MM*860MM*24MM |
|||||
Sr. no |
Particulars |
Image |
Production capacity |
Stroke in Min. |
Production in 1 hour |
||
Size |
PCS |
||||||
1 |
Fly ash Bricks |
|
230*100*75MM 230*110*75MM 250*125*75MM |
12 12 10 |
3 |
2160 pcs. 2160 Pcs. 1800 pcs. |
|
2 |
Uni Paver Block |
|
220*110*60MM
|
10 |
3 |
1800 pcs. |
|
3 |
I shape Paver Block |
|
200*165*60MM |
8 |
3 |
1440 pcs. |
|
4 |
Solid concrete Block |
|
400*200*200MM 400*150*200MM 300*200*150MM |
3 4 4 |
2.5-3
|
450-540pcs. 600-720pcs. 600-720pcs. |
|
5 |
Hollow concrete Block |
|
400*200*200MM 400*150*200MM 300*200*150MM |
3 4 4 |
2-2.5 |
360-450pcs. 480-600pcs. 480-600pcs. |
|
Production capacity mention is a rated capacity and it depends upon experience of work force, Efficient Team & Production effective time Management.
