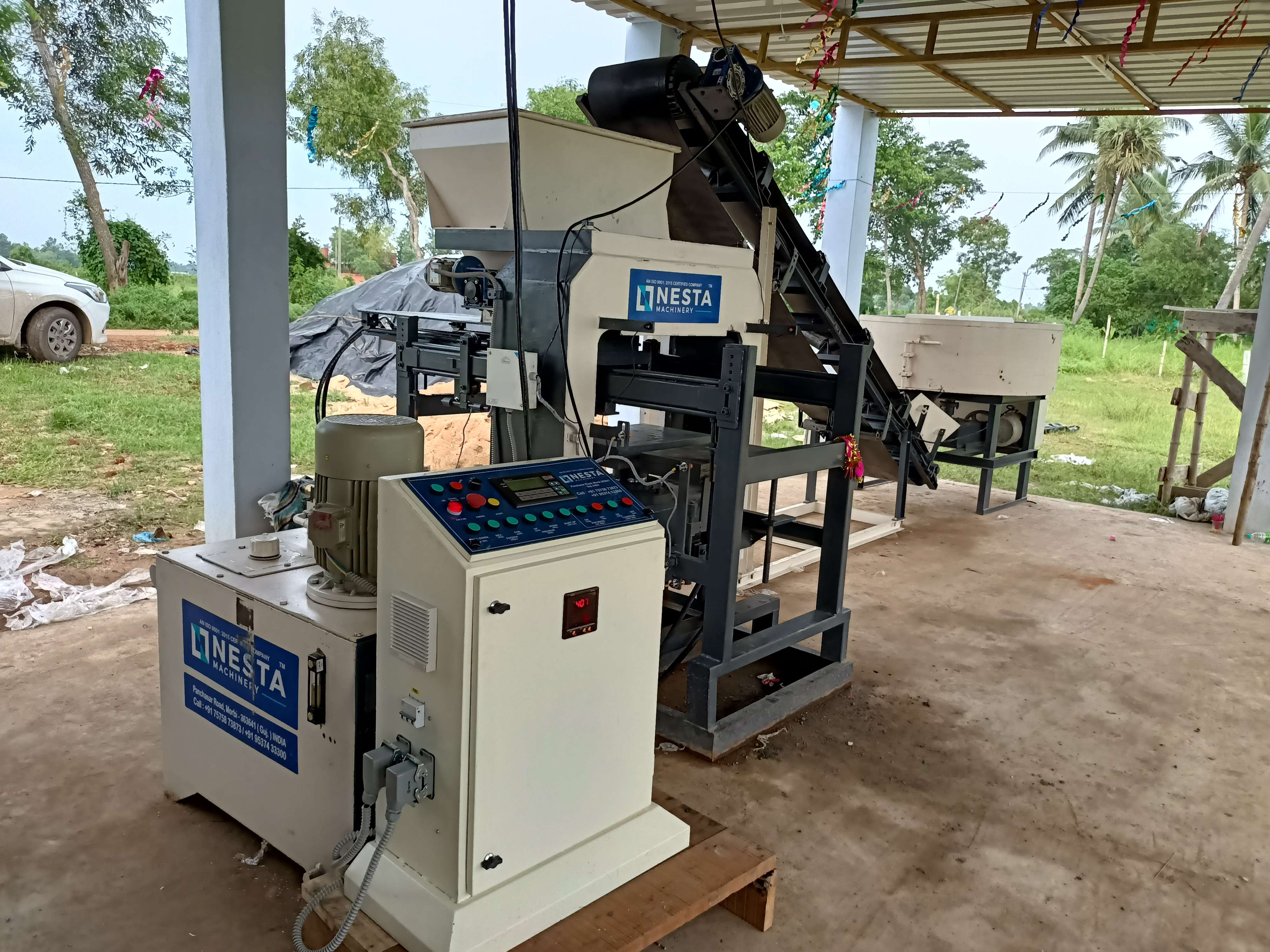

Manufacturing capacity:-Fly ash Bricks 6kvt in 1 operation.
Standard Bricks size 230*110*75MM.
Heavy duty body structure, Build from 18MM MS plate
The Machine is controlled by PLC panel.
Main technology Hydraulic Pressure with ultra Vibration system specially
Designed to produce high quality fly ash bricks & Blocks.
Technical Specification.
Cylinder Tonnage |
50 to 70 Ton |
Cycle Period for bricks |
18 to 20 second |
Cylinder Dia |
125*180MM |
Cycle Period for Color Paver |
25 to 30 second |
Main Technology |
Hydraulic Pressure With Vibration |
Color Feeder |
Optional (Charges extra.) |
Operation System |
Plc Panel Control |
Stacker System |
Optional (Charges extra.) |
Oil cooling System |
Yes Available |
Plate Dimension |
450*600*18MM |
General Machine Specification of Model NESTA-05
Total Power Need |
7.5HP Power Pack 1HP Vibration (Crompton) |
7.5HP Pan Mixer 1nos (Crompton) |
2HP conveyor Belt (Crompton) |
|
Total 18HP/ 13.41kw |
Man Power |
1 Skilled |
6 Unskilled |
Total 7 person |
||
Oil need for Machine |
68 No. hydraulic Oil for Main Machine Power Pack 90 No. Gear oil for Pan Mixer |
400Ltr. 15Ltr. |
|||
Total Space Need |
- |
15,000sq ft |
|||
Shed Size |
- |
75*50ft |
|||
Shed Height |
- |
18ft |
|||
Pallets Requirement |
Size 450MM*600MM*18MM |
1500pcs |
|||
Accessories |

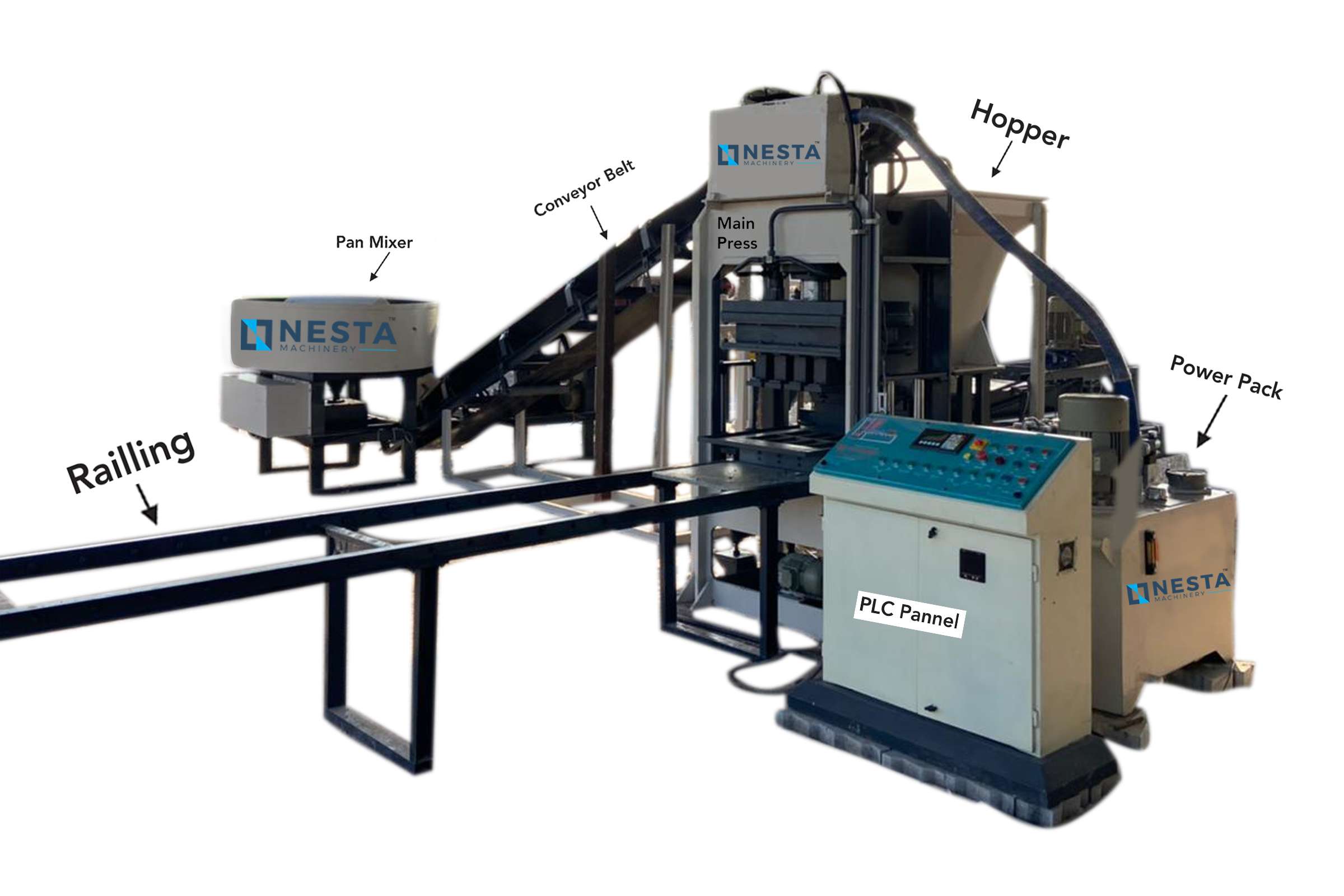

1pcs Automatic Fly ash Bricks Machine with power pack & auto control Plc Panel, 1pcs Bricks Die set, 1pcs Roller Pan Mixer,1pcs conveyor belt,2pcs Cycle trolley, 2pcs Borrow Trolley, tool kit, blower |
||||
Note:- |
We provide engineering Drawing for civil work And shed for Machine |
RAW MATERIAL RATIO |
|||
No. |
Material |
Ratio |
Properties |
1 |
Fly ash |
50% |
In powder form |
2 |
Sand |
20% |
River Sand |
3 |
Stone Dust |
20% |
Less than 6mm |
4 |
Cement (Lime + Gypsum) |
10% |
OPC 53 Grade |
Total |
100% |
|
|
This Composition may very depending on the quality & cost of the raw-Material. |
Production Details Model NESTA-05
PRODUCT SIZE & PRODUCTION DETAILS |
|||||||
|
|
Pallet size 450MM*600MM*18MM |
|||||
Sr. no |
Particulars |

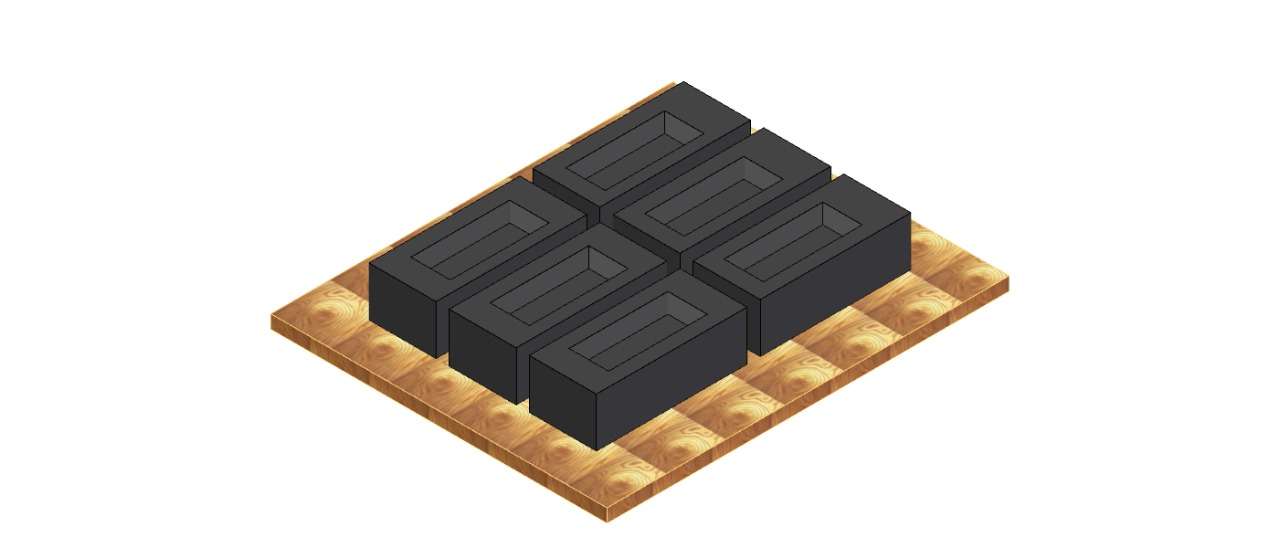

Image |
Production capacity |
Stroke in Min. |
Production in 1 hour |
||
Size |
PCS |
||||||
1 |

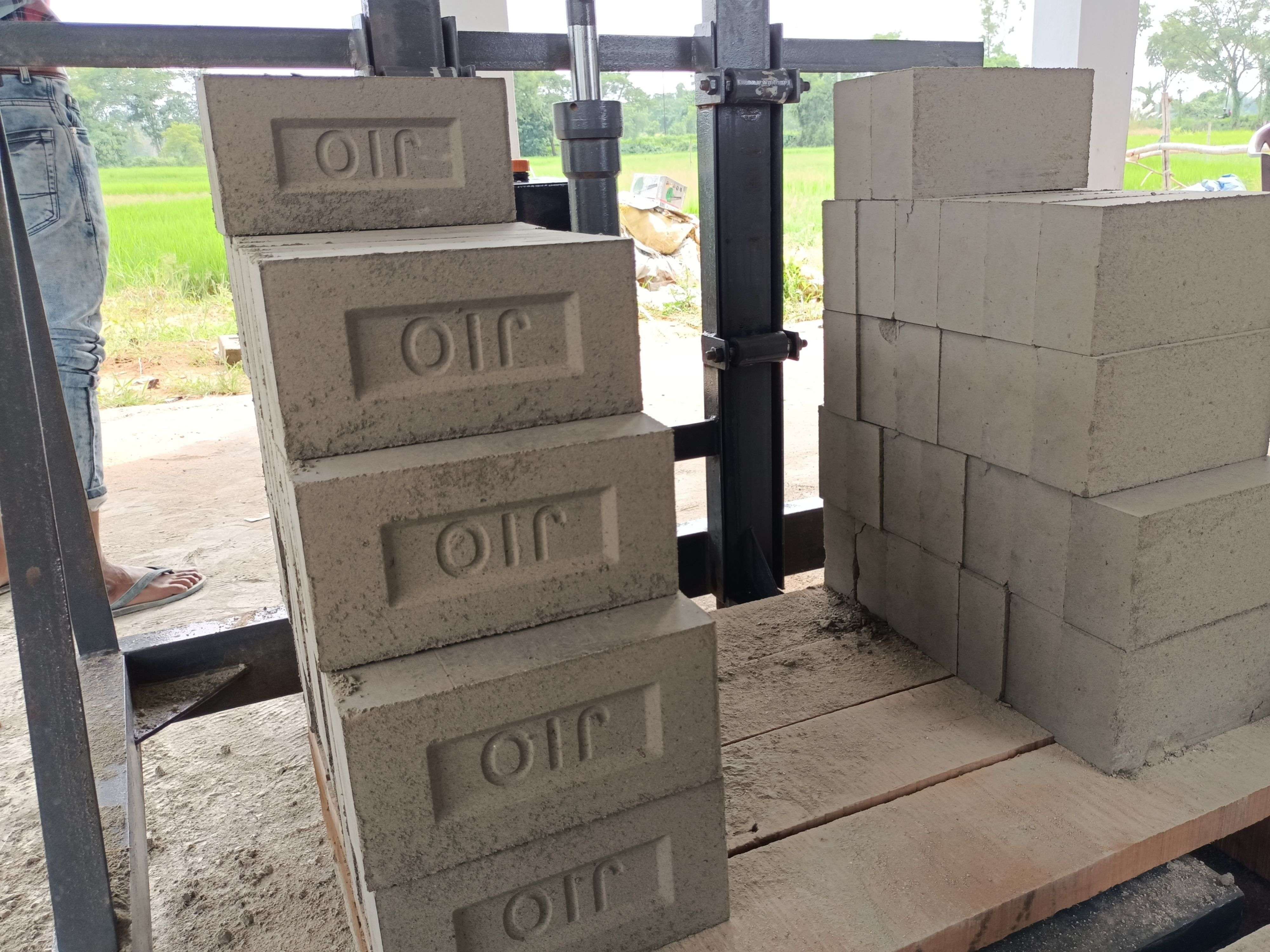

Fly ash Bricks |
|
230*100*75MM 230*110*75MM 250*125*75MM |
6 6 4 |
3 |
1080 pcs. 1080 Pcs. 720 pcs. |
|
2 |
Uni Paver Block |
|
220*110*60MM
|
4 |
3 |
720 pcs. |
|
3 |
I shape Paver Block |
|
200*165*60MM |
4 |
3 |
720 pcs. |
|
4 |
Solid concrete Block |
|
300*200*150MM |
2
|
3
|
360pcs. |
|
5 |
Hollow concrete Block |
|
300*200*150MM |
2 |
2-2.5 |
240-300pcs.
|
|
* Production capacity mention is a rated capacity and it depends upon experience of work force, Efficient Team & Production effective time Management.
