Manufacturing capacity:-Fly ash Bricks 4kvt in 1 operation.
Standard Bricks size 230*110*75MM.
Heavy duty body structure, Build from 20MM MS plate
The Machine is controlled by PLC panel.
Main technology Hydraulic Pressure system specially
Designed to produce high quality fly ash bricks.
Technical Specification.
Cylinder Tonnage |
80 to110 Ton |
Cycle Period for bricks |
18 to 20 second |
Cylinder Dia |
150*200MM |
Oil cooling System |
Yes Available |
Main Technology |
Hydraulic Pressure |
Plate Dimension |
300*600*18MM |
Operation System |
Plc Panel Control |
|
|

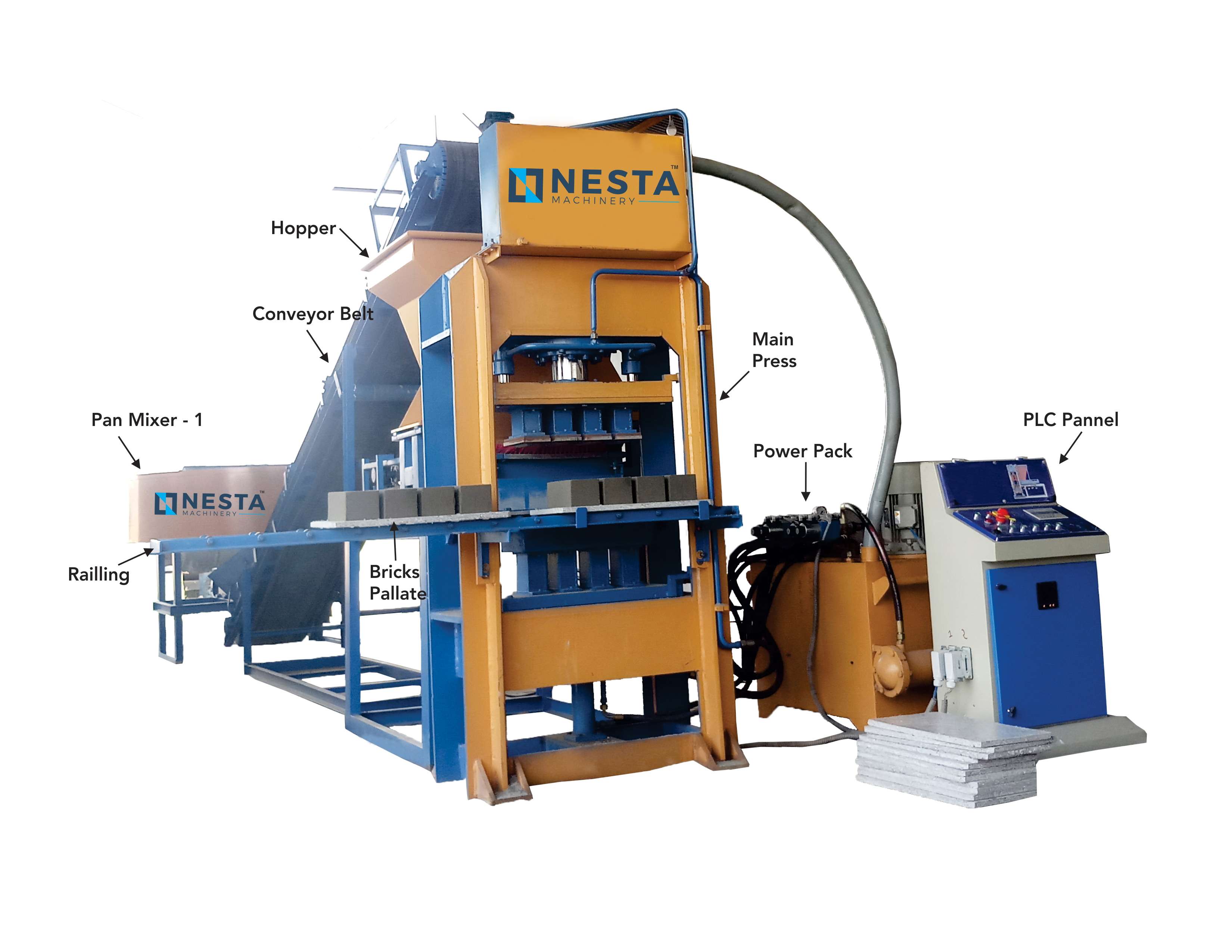

General Machine Specification of Model NESTA-06
Total Power Need |
10HP Power Pack Motor (Crompton) |
7.5HP Pan Mixer 1nos (Crompton) |
2HP conveyor Belt (Crompton) |
|
Total 19.5HP/ 14.53kw |
Man Power |
1 Skilled |
6 Unskilled |
Total 4 person |
||
Oil need for Machine |
68 No. hydraulic Oil for Main Machine Power Pack 90 No. Gear oil for Pan Mixer |
400Ltr. 30Ltr. |
|||
Total Space Need |
- |
20,000sq ft |
|||
Shed Size |
- |
75*50ft |
|||
Shed Height |
- |
18ft |
|||
Pallets Requirement |
Size 300MM*600MM*18MM |
1500pcs |
|||
Accessories |
1pcs Automatic Fly ash Bricks Machine with power pack & auto control Plc Panel, 1pcs Bricks Die set, 1pcs Roller Pan Mixer,1pcs conveyor belt,2pcs Pallets trolley, 2pcs Borrow Trolley, tool kit, blower |
||||
Note:- |
We provide engineering Drawing for civil work And shed for Machine |
RAW MATERIAL RATIO |
|||
No. |
Material |
Ratio |
Properties |
1 |
Fly ash |
50% |
In powder form |
2 |
Sand |
20% |
River Sand |
3 |
Stone Dust |
20% |
Less than 6mm |
4 |
Cement (Lime + Gypsum) |
10% |
OPC 53 Grade |
Total |
100% |
|
|
This Composition may very depending on the quality & cost of the raw-Material. |
Production Details Model NESTA-06
PRODUCT SIZE & PRODUCTION DETAILS |
|||||||
|
|
Pallet size 300MM*600MM*18MM |
|||||
Sr. no |
Particulars |
Image |
Production capacity |
Stroke in Min. |
Production in 1 hour |
||
Size |
PCS |
||||||
1 |
Fly ash Bricks |
|
230*100*75MM 230*110*75MM 250*125*75MM |
4 4 3 |
6 |
1400 pcs. 1400 Pcs. 1100 pcs. |
|
Production capacity mention is a rated capacity and it depends upon experience of work force, Efficient Team & Production effective time Management.
